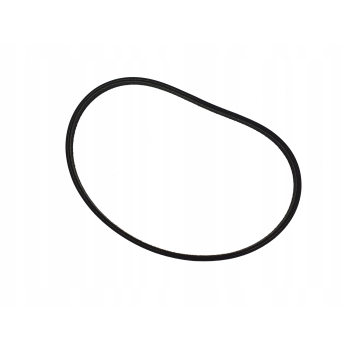

* Makita pasek przeniesienia napędu (785 mm) do kosiarki spalinowej z napędem PLM4622

( V BELT 10MMX6MM L=785MM / PETROL LAWN MOWER / pasek klinowy )

Producent: Makita

Pozycja na schemacie: nr 100 - PLM4622

Zastosowanie:

Kosiarka spalinowa z napędem do trawy Makita :

PLM4612

PLM4622

PLM4622N

PLM4622N2

Kosiarka benzynowa Dolmar :

PM4601S3

PM4601S3C

PM4601S3R

Spis części do PLM4622

pozycja artykułu, nr katalogowy, opis produktu, ilość:

001; DA00000964  SELF DRIVE CONTROL LEVER;  1

002; DA00000961  ENGINE CLUTCH LEVER;  1

003; 671001524  SADDLE WASHER 8;  1

004; 671001524  SADDLE WASHER 8;  1

005; 671002002  UPPER HANDLE ASSY;  1

006; 671006082  HEX. FLANGE BOLT M6X50;  1

007; 671001137  THROTTLE CONTROL BOX ASSY;  1

008; DA00000574  FLAT WASHER 6;  1

009; DA00000864  SPRING WASHER 6;  1

010; DA00000575  HEX.CAP NUT M6;  1

011; 671001115  ENGINE CLUTCH WIRE;  1

012; DA00000977  SELF DRIVE CONTROL WIRE ASSY;  1

013; DA00000543  HEX.FLANGE LOCK NUT M6;  1

014; DA00000573  OUTER WIRE STOPPER;  1

015; DA00000543  HEX.FLANGE LOCK NUT M6;  1

016; 671470002  SPEED ADJUSTMENT BOX(UPPER);  1

017; 671011123  EXTENTION SPRING;  1

018; DA00000972  DRIVE SPEED ADJUST LEVER;  1

019; DA00000543  HEX.FLANGE LOCK NUT M6;  1

020; DA00000869  DRIVE SPEED ADJUST GRIP UPPER;  1

021; DA00000870  DRIVE SPEED ADJUST GRIP LOWER;  1

022; DA00000873  TAPPING SCREW ST4.2X15;  1

023; 671001514  DRIVE SPEED ADJUST LEVER MOUNT;  1

024; 671001511  OUTER WIRE STOPPER PLATE;  1

025; 671011162  DRIVE SPEED ADJUST WIRE ASSY;  1

026; 671006063  HEX.BOLT M6X40;  1

027; DA00000577  HEX.FLANGE BOLT M6X35;  1

028; DA00000603  TAPPING SCREW ST4X16;  1

029; 671002075  FLAT WASHER 4;  1

030; 671470001  SPEED ADJUSTMENT BOX(LOWER);  1

031; 671010630  TAPPING SCREW ST4.2X25;  2

032; 671001513  SHEATH;  1

033; 671006063  HEX.BOLT M6X40;  1

034; DA00000577  HEX.FLANGE BOLT M6X35;  1

035; DA00000579  STARTER GRIP HOOK;  1

036; DA00000574  FLAT WASHER 6;  1

037; DA00000864  SPRING WASHER 6;  1

038; DA00000575  HEX.CAP NUT M6;  1

039; DA00000563  HEXAGON NUT M8;  2

040; DA00000564  KNOB;  2

041; DA00000565  PLASTIC SADDLE WASHER 8;  2

042; DA00000569  SADDLE HEAD BOLT M8X58;  2

043-1; 671001606  LOWER HANDLE BAR;  1

044-1; 671611001  CABLE CLIP;  1

045-1; 671611001  CABLE CLIP;  1

046; DA00000563  HEXAGON NUT M8;  2

047; DA00000564  KNOB;  2

048; 671007007  FLAT WASHER 8;  2

049; 671006118  SADDLE HEAD BOLT M8X35;  2

050; DA00000562  HEX.FLANGE BOLT M8X16;  4

051; 671001180  RIGHT HANDLE BRACKET BLUE;  1

052; DA00000537  HEX.FLANGE LOCK NUT M8;  4

053; 671001179  LEFT HANDLE BRACKET BLUE;  1

054; 671468001  REAR FLAP;  1

055; DA00000543  HEX.FLANGE LOCK NUT M6;  2

056; 671009017  STOP RING E-6;  2

057; 671001518  REAR FLAP HINGE ROD;  1

058; 671011101  REAR FLAP TORSION SPRING;  1

059; 671002019  TRUSS HEAD SCREW M6X12;  2

060; DA00000787  HEIGHT ADJUSTER STOP PLATE;  1

061; DA00000543  HEX.FLANGE LOCK NUT M6;  2

062; 671800104  GROMMET;  1

063; 671800104  GROMMET;  1

064; DA00000537  HEX.FLANGE LOCK NUT M8;  3

065; 671001529  DECK BLUE;  1

066; 671659001  FRONT AXLE COVER;  1

067; DA00000911  TAPPING SCREW ST4.2X10;  8

068; 671007007  FLAT WASHER 8;  3

069; DA00000832  SPRING WASHER 8;  3

070; 671003024  SPECIAL HEX. BOLT M8X60/M8X17;  1

071; DA00000617  SPECIAL HEX.BOLT M8X35/M8X17;  1

072; DA00000586  HEX. BOLT M8X35;  1

073; 671002019  TRUSS HEAD SCREW M6X12;  2

074; 671011021  SPRING;  1

075; 671003042  STEPPED BOLT M8;  1

076; DA00000971  BELT TENSIONER BASE;  1

077; DA00000549  NYLON INSERT HEX.LOCK NUT M6;  2

078; 671001455  SPEED CONTROL BELT TENSIONER;  1

079; DA00000537  HEX.FLANGE LOCK NUT M8;  1

080; 671001056  BELT TENSIONER PULLEY;  3

081; 671004015  BALL BEARING 6001ZZ;  3

082; 671009021  RETAINING RING R-28;  3

083; DA00000563  HEXAGON NUT M8;  1

084; 671005008  NYLON INSERT HEX.LOCK NUT M8;  1

085; DA00000563  HEXAGON NUT M8;  1

086; 671006123  HEX. BOLT M5X55 LH;  1

087; 671008004  SPRING WASHER 5;  1

088; 671009020  RETAINING RING S-19;  1

089; 671001457  CUP WASHER;  1

090; 671011122  VARIABLE SPEED PULLEY SPRING;  1

091; 671010540  VARIABLE SPEED PULLEY UPPER;  1

092; 671001082  VARIABLE SPEED PULLEY LOWER;  1

093; DA00000543  HEX.FLANGE LOCK NUT M6;  1

094; 671002038  SHAFT SHEATH;  1

095; 671011156  SPRING;  1

096; 671005011  NYLON INSERT HEX.LOCK NUT M5;  2

097; 671001717  GEAR BOX MOUNT FLAT;  1

098; 671401201  V PULLEY;  1

099; DA00000598  H.S.SET SCREW(FLAT POINT)M6X8;  1

100; 671020282  V BELT 10MMX6MM L=785MM;  1

101; 671001533  BELT TENSIONER BRACE PLATE;  1

102; DA00000537  HEX.FLANGE LOCK NUT M8;  2

103; 671002019  TRUSS HEAD SCREW M6X12;  1

104; DA00000864  SPRING WASHER 6;  1

105; DA00000562  HEX.FLANGE BOLT M8X16;  1

106; DA00000832  SPRING WASHER 8;  1

107; 671007007  FLAT WASHER 8;  1

108; DA00000915  GEAR BOX MOUNT ANGLE;  1

109; 671502017  GEAR ASSY FOR SELF DRIVING;  1

C10; 671011180  TENSION SPRING FOR GEAR BOX;  1

110; DA00000537  HEX.FLANGE LOCK NUT M8;  1

111; 671004015  BALL BEARING 6001ZZ;  1

112; DA00000974  IDLER BRACKET;  1

113; DA00000543  HEX.FLANGE LOCK NUT M6;  1

114; 671011136  TORSION SPRING;  1

115; 671658001  BELT PROTECTING COVER;  1

116; 671005008  NYLON INSERT HEX.LOCK NUT M8;  2

117; 671006066  HEX. BOLT M6X25;  1

118; 671001037  TRUSS HEAD TAPPING SCREW 5X16;  2

119; DA00000979  BLADE SUPPORT LINING;  1

120; DA00000535  HIGHT ADJUST SUPPORT SPRING;  1

121; 671015252  INNER FRANGE;  1

122-1; DA00001274  BLADE 46;  1

123; 671010730  DISH SPRING WASHER;  1

124; 671006065  BLADE TIGHTEN BOLT 3/8-24 UNF;  1

125-1; DA00000536  WHEEL COVER 7 INCH;  2

126; DA00000537  HEX.FLANGE LOCK NUT M8;  2

127; DA00000538  BALL BEARING 6201ZZ;  2

128; 671020170  WHEEL ASSY 8 INCH;  2

129; DA00000538  BALL BEARING 6201ZZ;  2

130; DA00000849  INTERNAL GEAR;  2

131; DA00000603  TAPPING SCREW ST4X16;  12

132; DA00000604  STOP RING E-12;  2

133; DA00000607  SPUR GEAR 14 RIGHT;  1

134; DA00000597  COLUMN PIN 5X21.5;  2

135; DA00000606  REAR WHEEL DUST-PROOF COVER;  2

136; DA00000604  STOP RING E-12;  2

137; DA00001029  BALL BEARING R8ZZ;  2

138; DA00000610  DRIVE SHAFT BEARING CASE;  2

139; 671002029  TRUSS HEAD SCREW M5X12;  2

140-1; DA00001073  HANDLE SET;  1

141; DA00001058  HEIGHT ADJUSTMENT KNOB;  1

142; 671005011  NYLON INSERT HEX.LOCK NUT M5;  2

143; 671144602  REAR AXLE;  1

144; DA00000612  STOP RING E-19;  2

145; 671002019  TRUSS HEAD SCREW M6X12;  4

146; DA00000542 AXLE RETAINER;  2

147; DA00000543  HEX.FLANGE LOCK NUT M6;  4

148; DA00000605  SPUR GEAR 14 LEFT;  1

149; DA00000549  NYLON INSERT HEX.LOCK NUT M6;  1

150; 671002671  LINK ROD;  1

151; DA00000549  NYLON INSERT HEX.LOCK NUT M6;  1

152; 671001176  WHEEL COVER 6.5 INCH;  2

153; DA00000537  HEX.FLANGE LOCK NUT M8;  2

154; DA00000538  BALL BEARING 6201ZZ;  2

155; 671020150  WHEEL ASSY 7 INCH;  2

156; DA00000538  BALL BEARING 6201ZZ;  2

157; DA00000549  NYLON INSERT HEX.LOCK NUT M6;  4

158; 671445001  FRONT AXLE RETAINER;  2

159; 671418001  FRONT AXLE MOUNT;  2

160; 671002028  PAN.HED SCREW M6X45;  4

161; 671011125  HEIGHT ADJUST TENSION SPRING;  2

162; 671001786  FRONT AXLE;  1

163; 671454001  GRASS CATCHER HANDLE;  1

164; 671467001  GRASS CATCHER UPPER BORAD;  1

165; DA00000326  TAPPING SCREW ST5X16;  2

166; 671001443  GRASS CATCHER FRAME;  1

167; DA00000025  WASHER 5;  2

168; DA00000888  TAPPING SCREW ST5X12;  2

169-1; DA00000335  RETAINER PLATE;  2

170; DA00000888  TAPPING SCREW ST5X12;  4

171; 671001353  GRASS CATCHER FRAME SHEATH;  1

172; 671001418  GRASS CATCHER CLOTH SET MAKITA;  1

173; 671660001  MULCHING PLUG BOX;  1

174; 671316004  LOCKING BUTTON;  1

175; 671011005  COMPRESSION SPRING;  1

176; 671317001  PRESSING BOARD OF LOCKING;  1

177; DA00000603  TAPPING SCREW ST4X16;  2

A01; 671001078  BOX WRENCH 21MM;  1

A02; DA00000584  WRENCH HANDLE;  1
